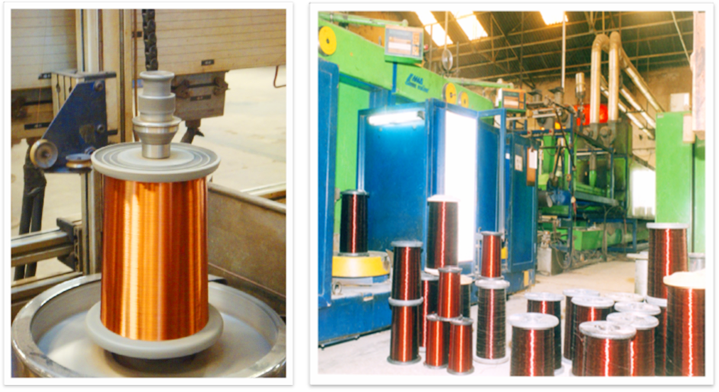

The wires are from diameter 2mm to 0.08mm and are used in various applications like automobiles, motors, lighting equipments, fans, appliances, generators, voltage stabilisers and transformers etc.
TYPE |
P - 130 |
MP - 155 |
V - 155 |
W - 200 |
W - 210 |
W - 220 |
IEC : |
60317 - 34 | 60317 - 3 | 60317 - 20 | 60317 - 8 | 60317 - 13 | 60317 - 26 |
| STANDARDS | ||||||
IS : |
13730 - 34 | 13730 - 3 | 60317 - 20 | 13730 - 8 | 13730 - 13 | 13730 - 26 |
Base Coat : |
Polyester | Modified Polyester | Polyurethane | Polyester-imide | Polyester-imide | Polyamide-imide |
| Enamel Base | ||||||
Top Coat: |
- |
- |
- |
- |
Polyamide-imide
|
- |
Diameter Range : |
0.1 - 2.0 mm | 0.1 - 2.0 mm | 0.1 - 2.0 mm | 0.1 - 2.0 mm | 0.1 - 2.0 mm | 0.1 - 2.0 mm |
Some Applicatons : |
General Purpose | General Purpose | Small - Power motors | Hermetic Motors, | Chokes, hand tools, | Special-Motors, |
| Rotating & Static | Rotating & Static | transformers, Relays, | FHP motors, Chokes, | hermetic motors | wiper motors, | |
| Electrical | Electrical Equipment | magnet coils & | etc | fuel pumps & | ||
| Equipments | having better thermal | Telecommunication | ignition coils | |||
| & Dielectric Properties | equipments | |||||
| Technical Data | ||||||
| Temp Index ( TI ) | 130°C |
155°C |
155°C |
180°C |
200°C |
220°C |
| Cut - through | 240°C |
240°C |
210°C |
300°C |
320°C |
360°C |
| Heat - Shock | 180°C |
180°C |
180°C |
200°C |
220°C |
300°C |
| Flexibility & Adherence | Good | Good | Good | Very Good | Very Good | Excellent |
| Special Characteristice | Good thermal | Good thermal | Directly Solderable | Resistant against | Dual Coated wire having | Excellent mechanical |
| And Remarks : | and dielectric | and dielectric | and heat resistant | refrigerant & transformer | resistance against | & chemical |
| properties | properties | upto 150°C | oil. | refrigerants & | properties. | |
| transformer-oil, | ||||||
| high burnout resistance | ||||||
| smooth surface for | ||||||
| high speed stator | ||||||
| winding machines. |
